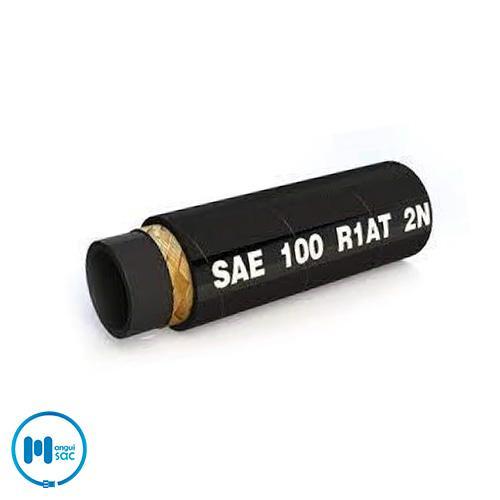

Manguera hidráulica SAE 100r1 AT

Hose for high pressure in hydraulic fluids. High resistance the passing of oil, fuel, water and air. Widely used in heavy machinery, industrial machines, engines, trucks and other similar.

¿Quiero más información?

Manguera hidráulica SAE 100r1 AT

4 + 11 =

Hose for high pressure in hydraulic fluids. High resistance the passing of oil, fuel, water and air. Widely used in heavy machinery, industrial machines, engines, trucks and other similar.

FEATURES:

- Inner tube composed of synthetic rubber

- Reinforced with a high-strength steel mesh

- Black synthetic rubber cover

- Smooth surface, internal and external

- High flexibility and good drag resistance

- Resistant to tempratura from -40ºC to 121ºC



DIAMETRO INTERNO ESPESOR DE PARED DIAMET. EXT PRESION TRABAJO PESO ROLLO ROLLOS DE:
Pulg. mm mm mm Bar PSI Kg mts
3/16" 4.8 3.4 11.50 242 3625 0.20 100
1/4" 6.4 3.5 13.30 218 3263 0.24 100
5/16" 7.9 3.5 14.80 208 3118 0.27 100
3/8" 9.5 3.9 17.20 174 2610 0.36 100
1/2" 12.7 3.9 20.40 155 2320 0.45 100
5/8" 15.9 3.8 23.50 126 1885 0.54 50
3/4" 19.1 4.2 27.50 102 1523 0.69 50
1" 25.4 5.0 35.40 85 1276 0.99 50
1-1/4" 31.8 5.7 43.20 61 914 1.21 40
1-1/2" 38.1 6.0 50.00 48 725 1.41 40
2" 50.8 6.7 64.20 39 580 1.91 40
