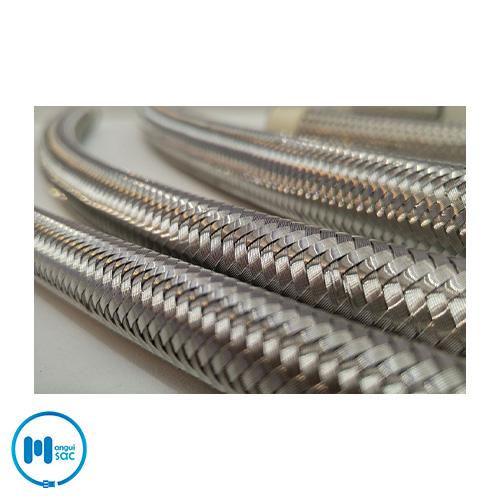

Manguera hidráulica SAE 100 R14 liso
Hose designed for work at HIGH PRESSURE and HIGH TEMPERATURE. Special for use in hydraulic steam andcompressed gas. Very tuilized for the passage of chemicals, food, oil, fuel, water and hot air in the different industrial and automotive sectors.
¿Quiero más información?
Hose designed for work at HIGH PRESSURE and HIGH TEMPERATURE. Special for use in hydraulic steam andcompressed gas. Very tuilized for the passage of chemicals, food, oil, fuel, water and hot air in the different industrial and automotive sectors.
FEATURES:

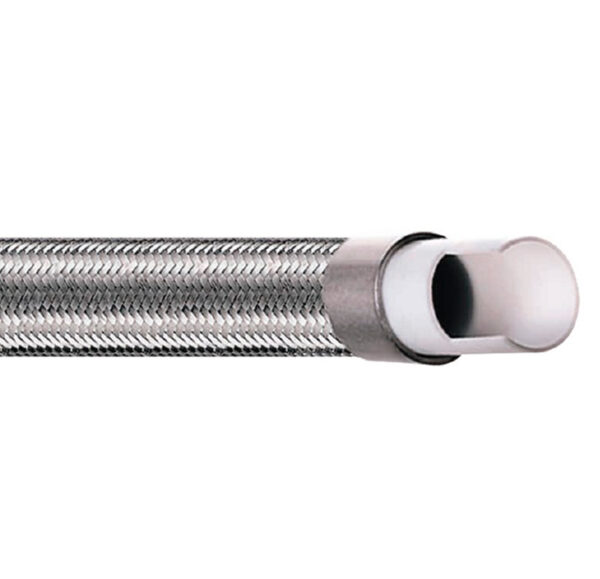

- Smooth Teflon Composite Inner Tube (PTFE)
- Cover with stainless steel mesh. Braided 304 series
- High flexibility and good drag resistance
- High durability
- Resistant to tempratura from -54ºC to 232ºC
| DIAMETRO INTERNO | ESPESOR DE PARED | DIAMET. EXT | PRESION TRABAJO | PESO ROLLO | ROLLOS DE: | ||||||||||
| Pulg. | mm | mm | mm | Bar | PSI | Kg | mts | ||||||||
| 1/8" | 3.2 | 1.6 | 6.4 | 233 | 3500 | 100 | |||||||||
| 3/16" | 4.8 | 1.3 | 7.3 | 233 | 3500 | 50 | |||||||||
| 1/4" | 6.4 | 1.5 | 9.4 | 200 | 3000 | 50 | |||||||||
| 5/16" | 7.9 | 1.6 | 11.2 | 167 | 2500 | 50 | |||||||||
| 3/8" | 9.5 | 1.8 | 13.0 | 133 | 2000 | 50 | |||||||||
| 1/2" | 12.7 | 1.7 | 16.0 | 177 | 1750 | 30 | |||||||||
| 5/8" | 15.9 | 1.7 | 19.3 | 100 | 1500 | 30 | |||||||||
| 3/4" | 19.1 | 1.6 | 22.4 | 67 | 1000 | 30 | |||||||||
| 7/8" | 22.2 | 1.7 | 25.6 | 67 | 1000 | 50 | |||||||||
| 1" | 25.4 | 1.7 | 28.7 | 67 | 1000 | 30 | |||||||||
